EM-TOOL
Advanced Analysis of Energy and Utility Consumption in Automation Systems
The Energy Management Tool, based on the Siemens Simatic Energy Manager, allows you to integrate most measuring devices into a single, coherent monitoring system. Clear data presentation in various reports supports more comprehensive control of the production process, its optimization and cost reduction.
Benefits
- minimum infrastructure modification
- maximum utilization of existing measurement devices
- flexibility – possibility of gradual development of the measurement system
- cost savings – use of existing Ethernet networks, computer hardware and measurement devices with supported communication protocols
Measurement
- electricity
- water
- cooling water
- gas
- compressed air
- steam
- sewage
- other utilities
Concept for the Development of Media Monitoring

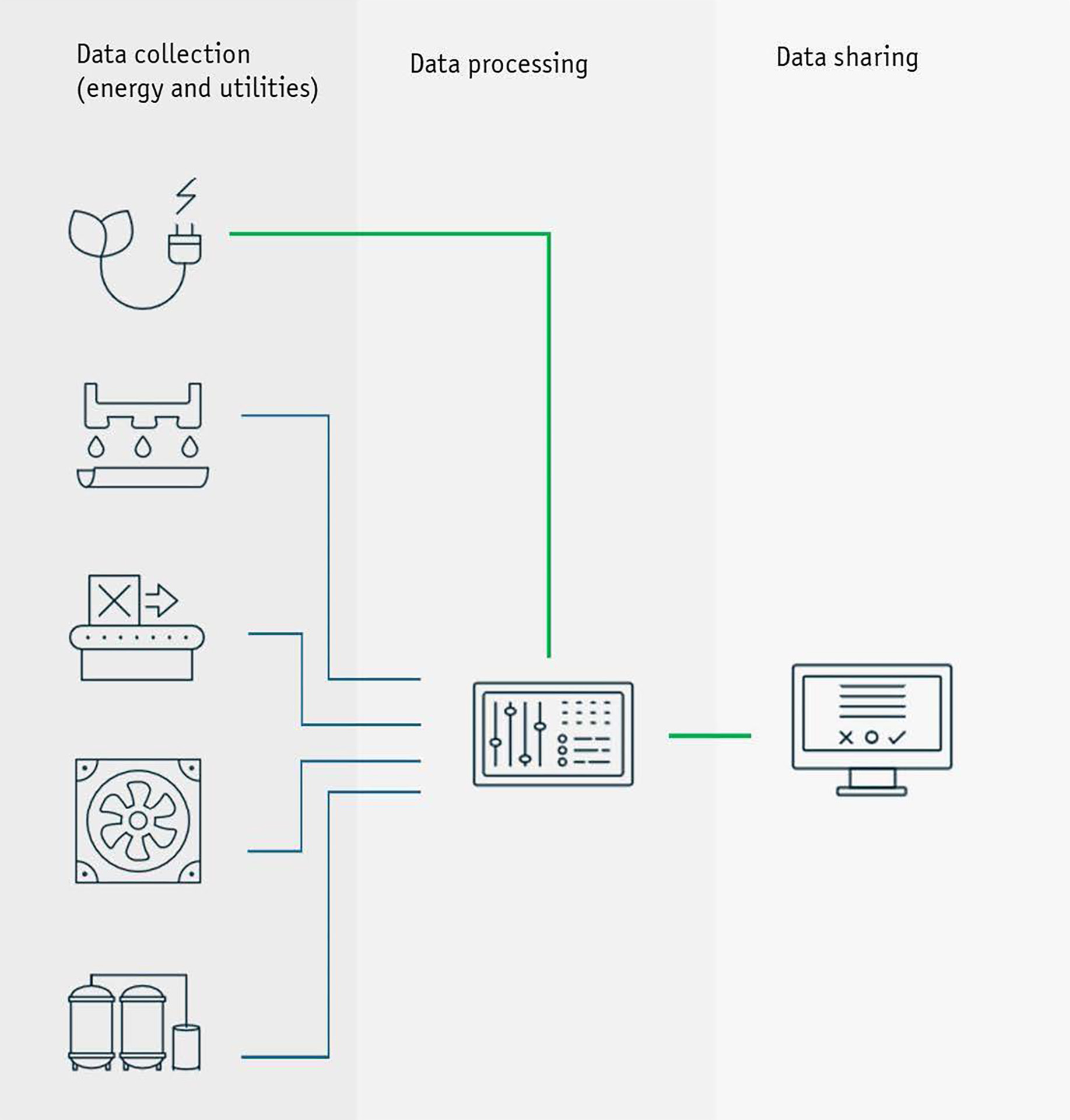

Collecting Data – Technical Structure
Physical Layer – Measurement
- verification of existing measurement points and the collected data
- expansion of the system with the necessary measurement devices
- utilization of existing PLC controllers by adding energy measurement modules and OPC UA communication
- expansion of the existing communication network infrastructure to add new measurement devices
- utilization of devices from reputable manufacturers, e.g. Siemens, Endress+Hauser, Moxa

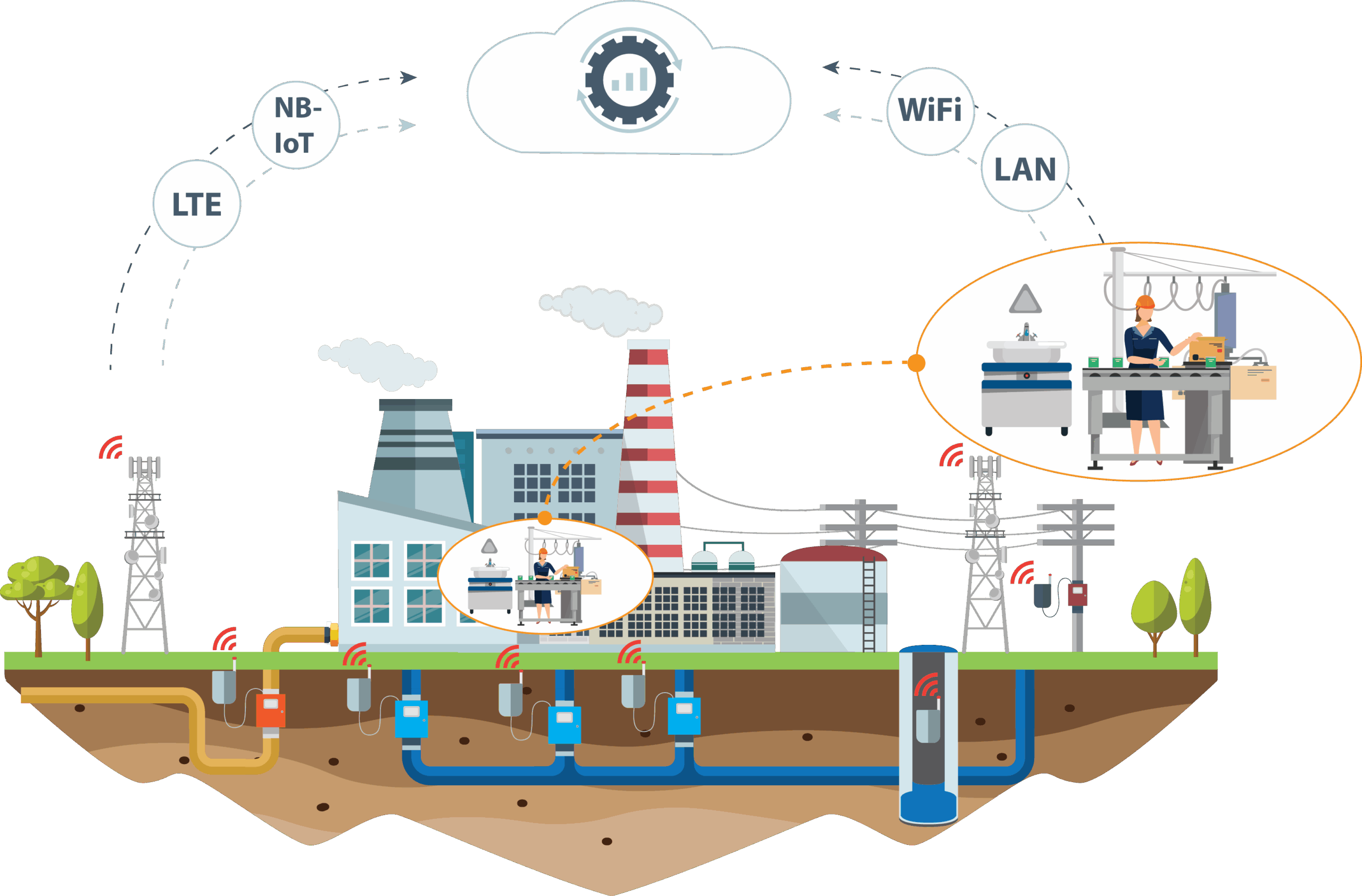

Communication
- utilization of existing Ethernet infrastructure based on Modbus TCP communication
- use of communication gateways to unify the end protocol
- integration of offline measuring devices through periodic reading and manual data entry, as a temporary or permanent solution
Hardware
- recommended use of the customer’s existing server infrastructure for software installation
- Siemens EdgeDevice as a local solution for the first stage of system development or its distributed concept as an alternative to client–server architecture
- possibility of adding individual computer hardware selected in accordance with the software manufacturer’s requirements
Unlock the full potential of your energy data – start optimizing your production processes with EM-Tool today and get in touch with us to learn more.
